$FG HOME

From FlightGear wiki
Jump to navigation Jump to search

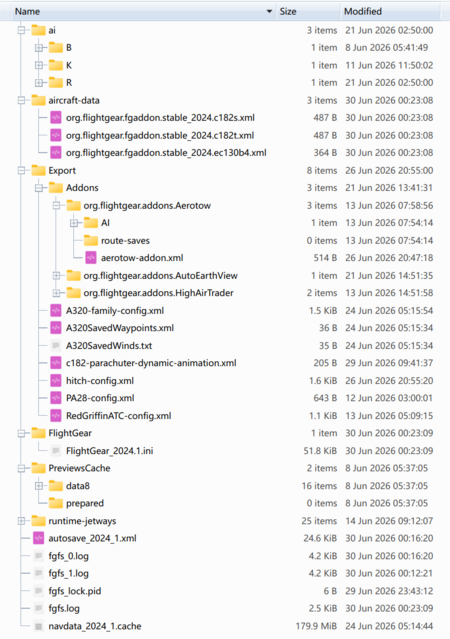

Screen shot showing typical structure $FG_HOME

The environment variable$FG_HOME is a setting indicating the main location where user-specific FlightGear data is stored (not application data). $FG_HOME is a notable place were FlightGear data is written to. $FG_HOME is also where large amounts of data downloaded by FlightGear like TerraSync scenery or Aircraft data is written to, by default.

$FG_HOME should not be confused with $FG_ROOT, which is generally read-only.

$FG_HOME is normally used to refer to the operating system specific location for some settings/folders. Its default value is determined by the fgfs binary during startup and is a directory that varies with the operating system supported by FG (Windows, OS X and Linux). It is highly recommended to rely on the default value (i.e., not setting $FG_HOME yourself in any way), unless you Really Know What You Are Doing™.

Very advanced users (i.e. power users and developers) who wish to run parallel installs of FlightGear can specify a different $FG_HOME for each install as described below.

Note  The /sim/fg-home property should be considered read-only, for similar reasons why $FG_HOME shouldn't be explicitly set by users.
Note  FlightGear reads the fgfsrc config file from $FG_HOME if it exists (fgfsrc without any leading dot), in addition to .fgfsrc from $HOME (with a leading dot in this case).

Content

In $FG_HOME is information stored between sessions. That information is for example configuration/preferences, properties marked with the user-archive attribute and aircraft-specific settings (using the data helper class in aircraft.nas). $FG_HOME is also the location for the SQLite-based navdata cache.

Common paths

You can determine the location of your $FG_HOME by using the property browser and checking the value of /sim/fg-home, but the usual paths are shown below.

You can also use the Nasal Console to print out $FG_HOME:

var path = getprop("/sim/fg-home");
print("Your $FG_HOME is at: ", path);

The /sim/ property subtree is also the place where you can find other folders, such as fg-root, fg-scenery and the current working directory (fg-current).

Linux

~/.fgfs/

Mac OS X

~/Library/Application Support/FlightGear (`~/Library` is a hidden folder by default. In versions of macOS newer than 10.12, you can use the shortcut `Cmd + Shift + .` to view hidden folders. For older versions, see [1])

As all future FlightGear versions will take their preferences from here, it is a good idea to have their access available easily.

Desktop/Finder/Go/Go to Folder is where you need to start.

When given the option, input: ~/Library/Application Support/FlightGear

It is probably a good idea to have ~/Library/Application Support/FlightGear saved on a Stickies note just in case you forget it.

If you want/need to refer to any of these files frequently, you could make an alias of a file, or the whole folder, and place it somewhere easier to access. TerraSync data is stored in $FG_HOME/TerraSync in the default configuration, see TerraSync for details.

Windows

FlightGear 2020.3 and later

%userprofile%\FlightGear

%userprofile% is the directory that contains the Windows user profile (perm).Ways to find the%userprofile% directory: 1). Press Windows key+Ror bring up the RUN box. Type %userprofile% to open. 2). In command prompt, type cd %userprofile%

%userprofile% is%homedrive%\Users\User name by default. Usually on most peoples systems: %homedrive% is C:\.

For example if your user profile was called MyUserProfile, it would most often be located under C:\Users\MyUserProfile . Then the path to $FG_HOME would be C:\Users\MyUserProfile\FlightGear.

In 2020.3.x the qt-launcher will notify users who have data in the old location under %userprofile%\Documents\FlightGear, and prompt users to move files to the new location under %userprofile%\FlightGear.

FlightGear 3.0 and later

%userprofile%\Documents\FlightGear

%userprofile% is %homedrive%\Users\User name by default, and %homedrive% is usually C:\.

Before FlightGear 3.0

%APPDATA%\flightgear.org\

%APPDATA% is another environment variable that depends on your Windows version. On XP and older, it can be found under C:\Documents and Settings\User name\Application Data. On Vista and later it can be found under C:\Users\User name\AppData\Roaming. The folder is hidden by default. See these instructions to show the folder.

Use in troubleshooting

As one user once said, "When in doubt delete $FG_HOME". Many problems, including corrupted databases, broken TerraSync and many others can be fixed by deleting fgfs_0.txt, fgfs.txt, terrasync_cache, and the navdata cache.

When you encounter problems, try deleting the files, but always keep the fgfs.log and fgfs_0.log log files to help in troubleshooting.

Power Users

Parallel installs of FlightGear

Note you can also override FG_HOME in the environment, to have totally distinct installs - this would be my recommend approach to running multiple versions in parallel. (The installers will always replace the stable / dev version as other commenters pointed out, so you can't use those so easily, you need to copy files around - I'm nota Windows expert so I don't know if there something that could be changed or improved here) If you start multiple instances (the same version or different) of FGFS using the same value of FG_HOME (whether that be the default or a custom one), we use a lock file to ensure only one (the first) has write access. The rest will go into read-only mode, and as you can maybe guess, treat FG_HOME as read-only. Sharing of aircraft / scenery is entirely about which paths are configured, BTW. However, one final caveat is that having multiple instances both running TerraSync, using the same terrasync dir, would likely act a bit funny. It ought to actually work, but it might download some things twice, and it's not a tested or supported configuration for the moment.[1]

Using the same TerraSync directory can save a lot of downloading and disk space. You can use the --terrasync-dir=path command line option. For example --terrasync-dir=C:\Path\to\my\separate\terrasync\folder\TerraSync. It's possible to add this option in the Settings > Additional Settings section of the qt-launcher.
